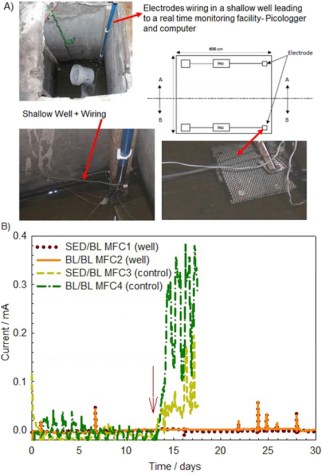

1-s2.0-S0043135417302233-gr5 — Field test set-up and data output from the MFC biosensor monitoring. A) The diagram shows an aerial view of the system configuration and distance between sensing system and data collection system. B) MFC1 and MFC2 were biosensors placed on the well; MFC3 and MFC4 were control biosensors placed in a vessel simulating the groundwater well. MFC3 and MFC4 were located in a room close to the well and the arrow indicates when they were intentionally contaminated. Monitoring of the sensors contained in the well lasted for 60 days obtaining the same trend as for the period shown.

Shallow groundwater wells, are the main source of drinking water in many rural and peri-urban communities.

The quantity and variety of shallow wells located in such communities make them more readily accessible than private or government operated deep boreholes, but shallow wells are more susceptible to faecal contamination, which is often due to leaching pit latrines.

For this reason, online monitoring of water quality in shallow wells, in terms of faecal pollution, could dramatically improve understanding of acute health risks in unplanned peri-urban settlements.

More broadly, inexpensive online faecal pollution risk monitoring is also highly relevant in the context of managed aquifer recharge via the infiltration of either stormwater or treated wastewater into the subsurface for aquifer storage and recovery.

To tackle this challenge, IN-GROUND – an UPGro Catalyst Project – trialled four different types of Microbial Fuel Cell (MFC) water quality biosensor in the lab (Newcastle University, UK) and in the field (Dar Es Salaam, Tanzania).

While further work is needed, the results provided proof-of-concept that these biosensors can provide continuous groundwater quality monitoring at low cost and without need for additional chemicals or external power input.

Full details of the work can be founded in this open access paper: Velasquez-Orta SB, Werner D, Varia J, Mgana S. Microbial fuel cells for inexpensive continuous in-situ monitoring of groundwater quality. Water Research 2017, 117, 9-17.

For more details contact Dr Sharon Velasquez-Orta
